Name: Polymer Station Post Insulators
Brand: Zhejiang Yuanneng fais fab Technology Co., Ltd
SKU: 56190974

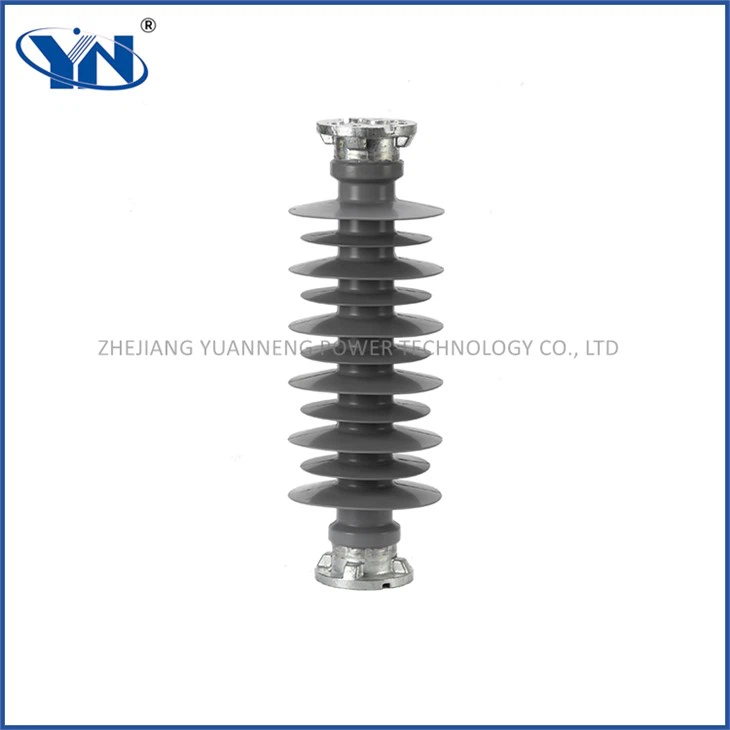

Polymer Station Post Insulators

Kev piav qhia ntawm Polymer Station Post Insulators

Polymer chaw nres tsheb tom qab insulators yog txhaj silicone roj hmab khib, iav-fiber reinforced epoxy cob cob, kub dip galvanized cam khwb hlau hlau haum, peb lub tuam txhab tsim polymer insulator raws li IEC / ANSI / GB txuj.

Technical Specification ntawm Polymer Station Ncej Insulators

Khoom code	Lub sijhawm luv (KV)	Rated dabtsi yog khoov load (KN)	Lub hauv siab qhov nyhav (hli) ± 10	Insulation nrug (hli)	Tsawg tshaj plaws tus kabmob dej nyob ze (hli)	Nrhav nthwv dej impulse impulse withstand voltage (KV)	1 min ntub Chaw thau khoom muaj zog ntawm qhov siab voltage (KV)
FZN4-12 / 4L (IEC)	12	4	215 ± 10	125	330	75	45
FZSW4-12 / 8	12	8	265 ± 10	155	430	75	45
FZSW-35/6	35	6	400 ± 10	290	840	185	80
FZSW3-40.5 / 5 (IEC)	40.5	5	445 ± 10	335	920	185	80
FZSW4-40.5 / 6	40.5	6	450 ± 10	335	920	185	80
FZSW4-40.5 / 10	40.5	10	450 ± 10	335	1400	185	80
FZSW-66 / 5L	66	5	790 ± 10	650	2230	400	130
FZSW-72.5 / 10	72.5	10	760 ± 10	585	1700	400	130
FZSW-72.5 / 9L	72.5	9	790 ± 10	650	Xyoo 1950	400	130
FZSW-72.5 / 12.5	72.5	12.5	760 ± 10	590	Xyoo 1950	400	185
FZSW-110/8	110	8	1220 ± 10	1055	3100	550	185
FZSW-126/10	126	10	1220 ± 10	1055	3500	550	185
FZSW-126/16	126	16	1220 ± 10	1010	3500	550	185

Cim npe nrov: polymer chaw nres tsheb tom qab insulators, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe
